Grid Wrap

Grid Wrap

Demonstrates the GridWrap widget - a grid layout with virtualized rendering for efficiently displaying many items.

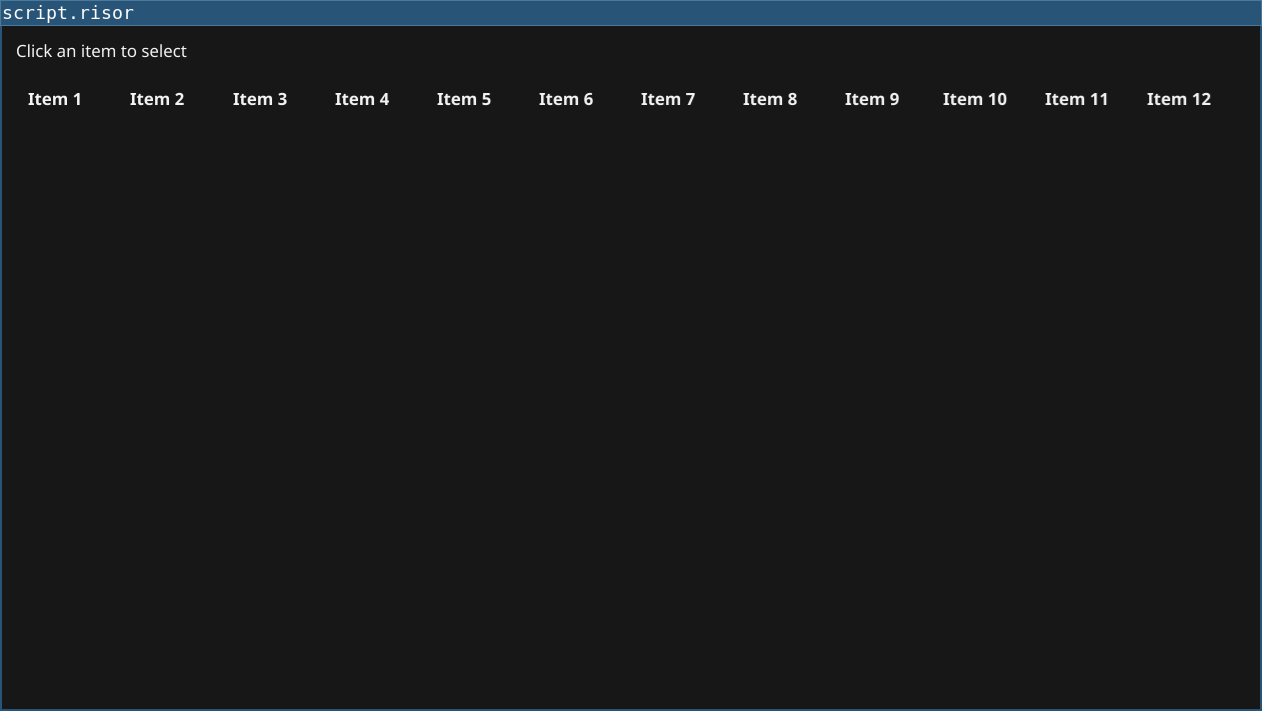

Grid Wrap Screenshot

Features

  • Grid Layout: Automatically arranges items in a grid
  • Virtualized Rendering: Only renders visible items for performance
  • Selection: Click to select/deselect items
  • Callbacks: Length(), CreateItem(), UpdateItem()
  • Events: OnSelected(), OnUnselected()

Code

require(["v0.2", "@gui"])

// Sample data - image gallery
let images = [
    "Item 1", "Item 2", "Item 3", "Item 4",
    "Item 5", "Item 6", "Item 7", "Item 8",
    "Item 9", "Item 10", "Item 11", "Item 12"
]

let statusLabel = widget.NewLabel("Click an item to select")

let grid = widget.NewGridWrap()

// Set data length
grid.Length(() => {
    return len(images)
})

// Create template item
// Using buttons provides consistent sizing and interactivity
grid.CreateItem(() => {
    let btn = widget.NewButton("Template", () => {})
    btn.Importance = constants.ImportanceLow
    return btn
})

// Update item with data
grid.UpdateItem((id, item) => {
    item.SetText(images[id])
})

// Handle selection
grid.OnSelected((id) => {
    statusLabel.SetText(sprintf("Selected: %s", images[id]))
})

// Handle deselection
grid.OnUnselected((id) => {
    statusLabel.SetText("Item deselected")
})

// Refresh to display data
grid.Refresh()

let layout = container.NewBorder(
    statusLabel,  // top
    nil,          // bottom
    nil,          // left
    nil,          // right
    grid          // center
)

window.SetContent(layout)

Running

cd examples/17-gridwrap
go run main.go

Or with the fynerisor CLI:

fynerisor script.risor

Full Source

View full example on GitHub ↗
